Rotadairon® STM 75 Tiller Stone buriers

Description of the Rotadairon® STM 75 stone burier

Want to breathe new life into your field? Select one of our soil preparers, the Rotadairon® STM 75. This stone burier has a coupling that allows it to adapt to tillers.

This stone burier is used in two ways. Either directly on your old ground, or on your unpacked ground and cleared of its large stones. This machine has a total width of 960 mm (37” ¾) and a working width of 750 mm (29” ½). Thanks to its strength and power, it prepares your soil and buries detritus, grass and even rocks present on your surface. Its adjustable rear roller helps you control the working depth, which can go up to 140 mm (5” ½).

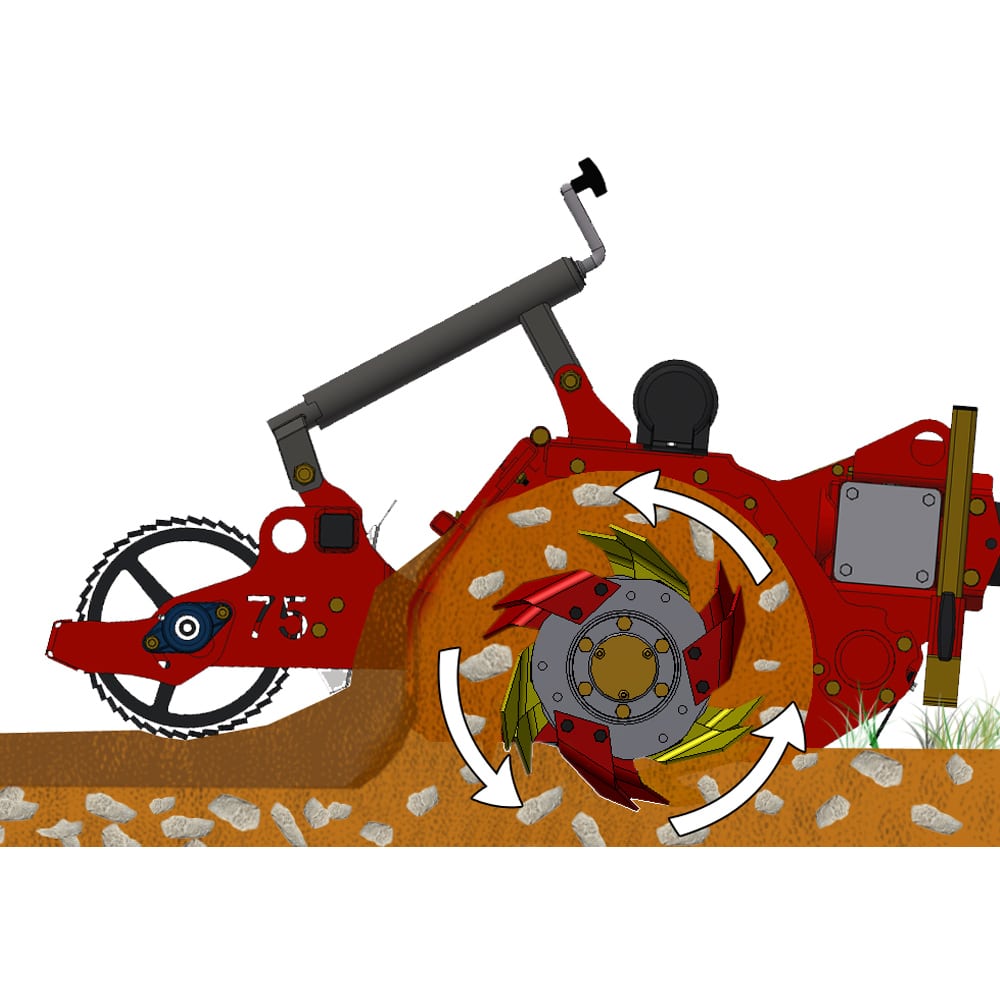

Initially, its oversized rotor linked to its 16 patented anti-sole blades turns the ground upside down, thus burying the old surface. In a second step, its 24 grid fingers retain the too thick clods, leaving only the finest soil, which will then be leveled thanks to its height levelling blade. Finally, its metal mesh roller is responsible for compacting the floor, while leaving it aerated. Our soil preparers replace many tools. In a single pass, your ground is clean, turned and oxygenated. With our Rotadairon® STM 75 Stone burier, your plot is ready to be seeded again.

Technical Specifications

Size of the machine

• width: 960 mm (37” ¾)
• length: 1215 mm (47” ¾)
• height: 590 mm (23” ¼)
• total weight: 155 kg

Work Dimension

• width: 750 mm (29” ½)
• working depth: 140 mm (5” ½)

Equipment

• Oversized rotor
• Anti-pad blades (Rotadairon® patent)

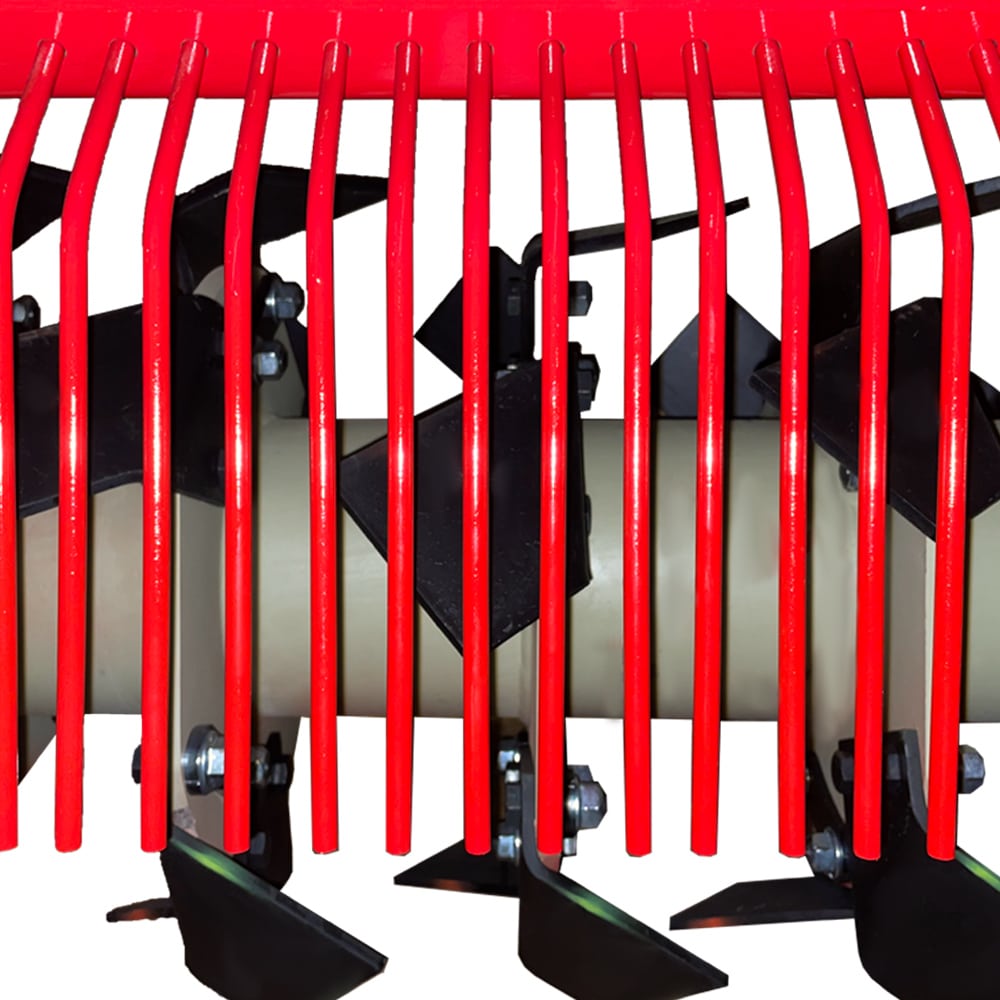

• Selection grid fingers

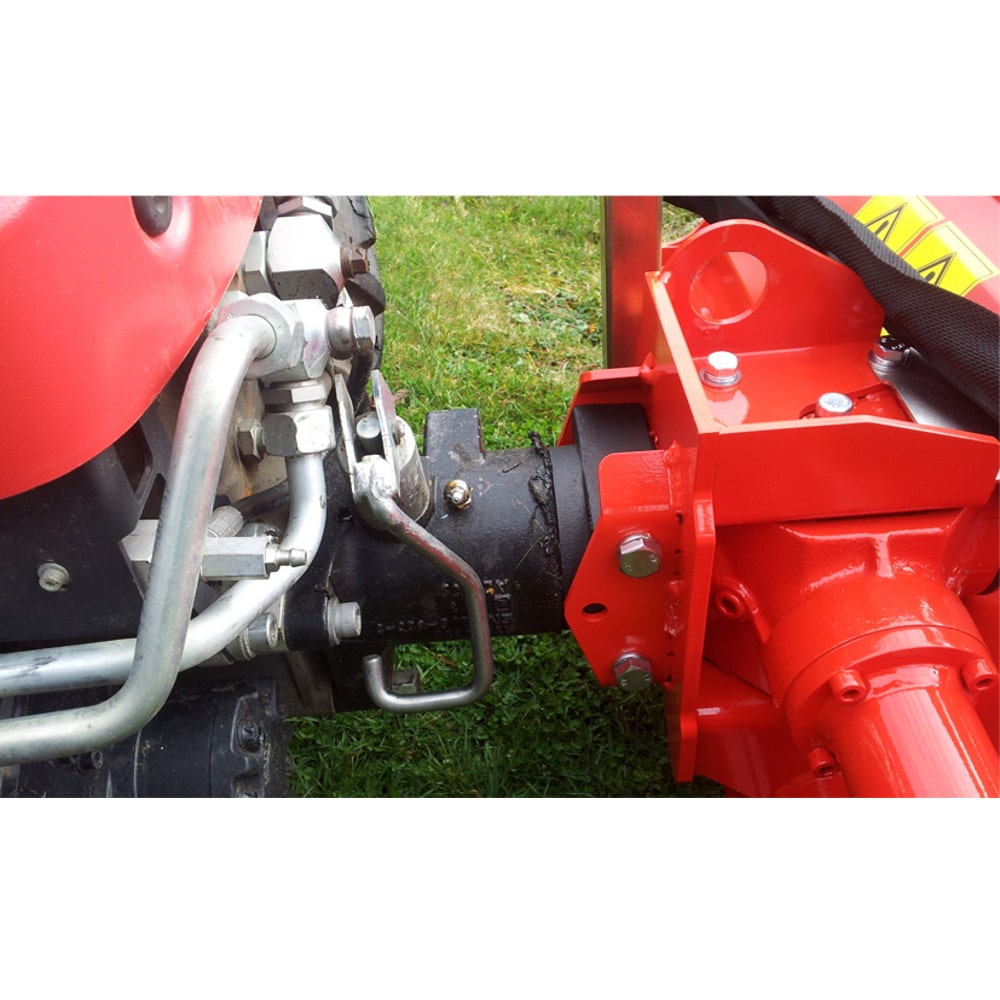

• Specific quick hitch system
• Soil preparation principle
• Adjustable working depth
• Grader blade

Option and additional accessory

• Working depth adjustment by hydraulic jack

Suggestions

The Rotadairon® STM 75 Stone buriers are to be used:

• Deep unpacked ground cleared of large stones
• Directly on the parcel

Service and Warranty

The Rotadairon® STM 75 Stone buriers are delivered with:

• A user manual
• A one-year warranty certificate

It is possible to add a one-year warranty extension (additional option).
