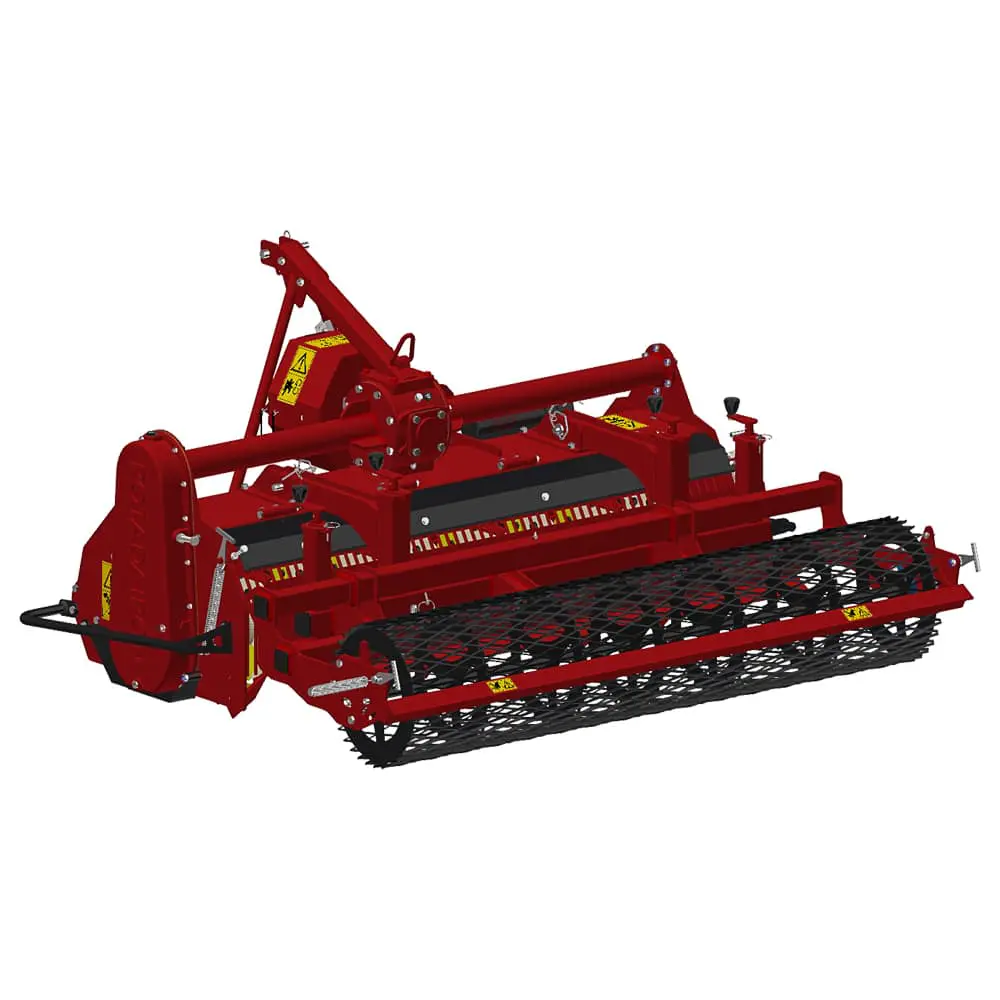

Rotadairon® RDL 180 Stone burier for tractors

Description

Want to breathe new life into your field? Select one of our soil preparers, the Rotadairon® RDL 180. This stone burier has a coupling that allows it to adapt to tractors.

This stone burier is used in two ways. Either directly on your old ground, or on your unpacked ground. This machine has a total width of 2240 mm (88” ¼) and a working surface of 1774 mm (69″ ¾) wide. Thanks to its strength and power, it prepares your soil and buries detritus, grass and even rocks present on your surface. Its adjustable rear roller helps you control the depth of tilling, which can go up to 160 mm (6” ¼).

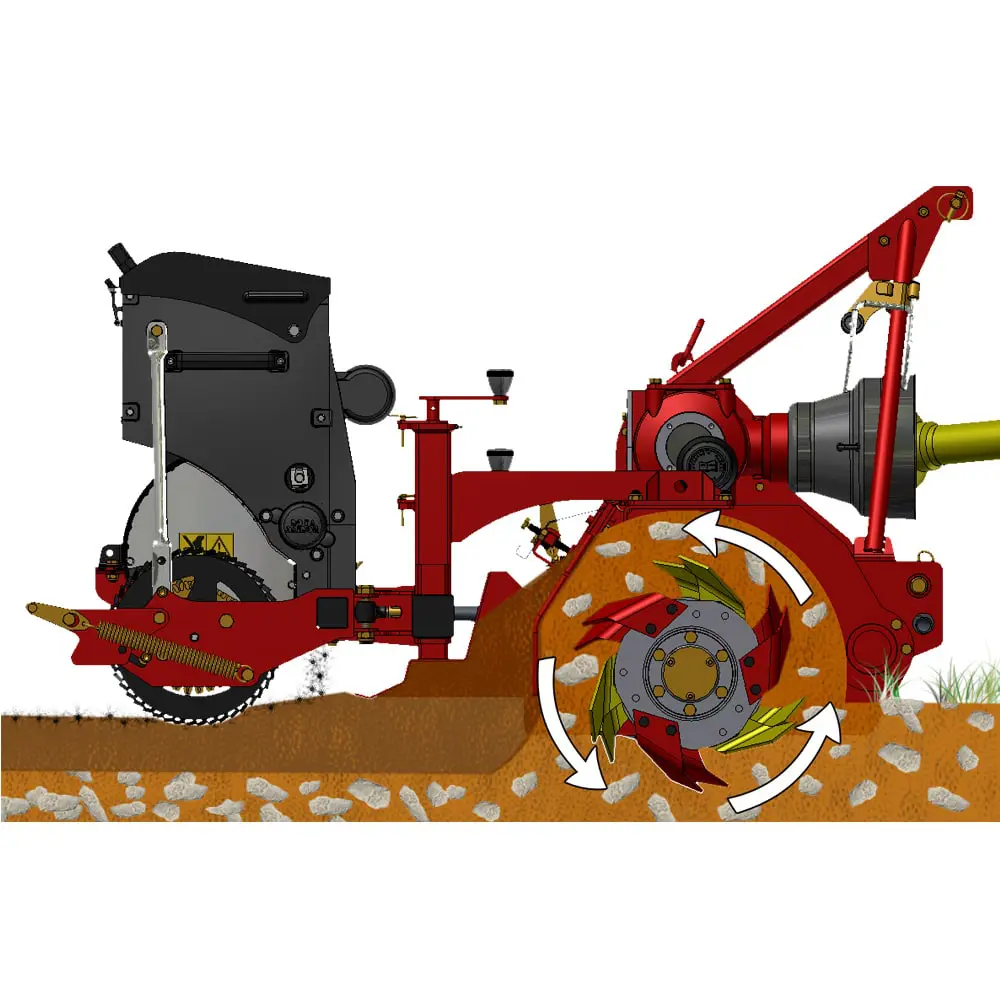

Its oversized rotor equipped with 54 patented anti-sole blades turns the ground upside down, thus burying the bulky waste from the old surface. The grid fingers retain the waste and the rocks leaving only the finest soil, which will then be levelled thanks to its height adjustable blade. Finally, its metal mesh roller allows a perfect finish of the terrain.

Our soil preparers replace many tools. In a single pass, your ground is clean, turned and oxygenated. With our Rotadairon® RDL 180 Stone burier, your plot is ready for planting again.

Technical Specifications

Size of the machine

• width: 2240 mm (88” ¼)
• length: 1920 mm (75” ½)
• height: 1120 mm (44’’)
• total weight: 915 Kg (2017.2 lb)

Work Dimension

• width: 1774 mm (69″ ¾)
• working depth: 160 mm (6” ¼)

Equipment

• Oversized rotor
• Anti-pad blades (Rotadairon® patent)

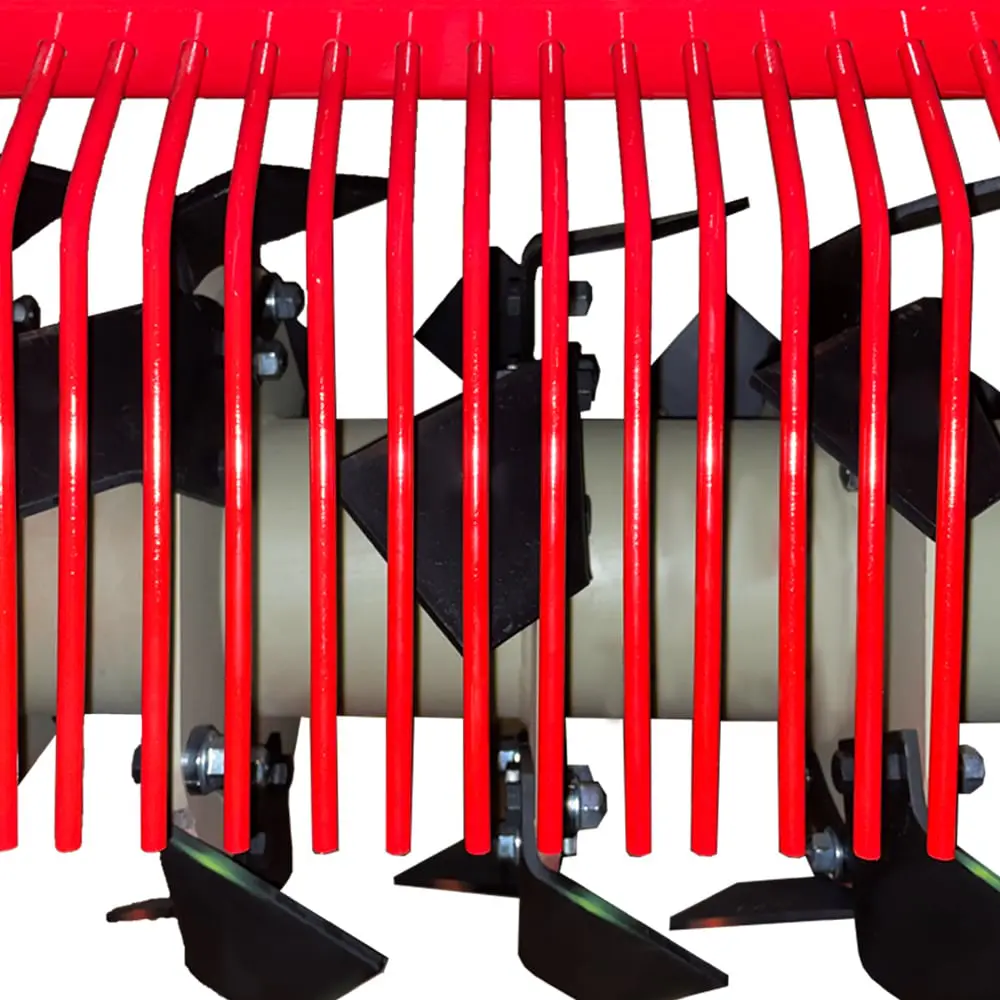

• Selection grid fingers

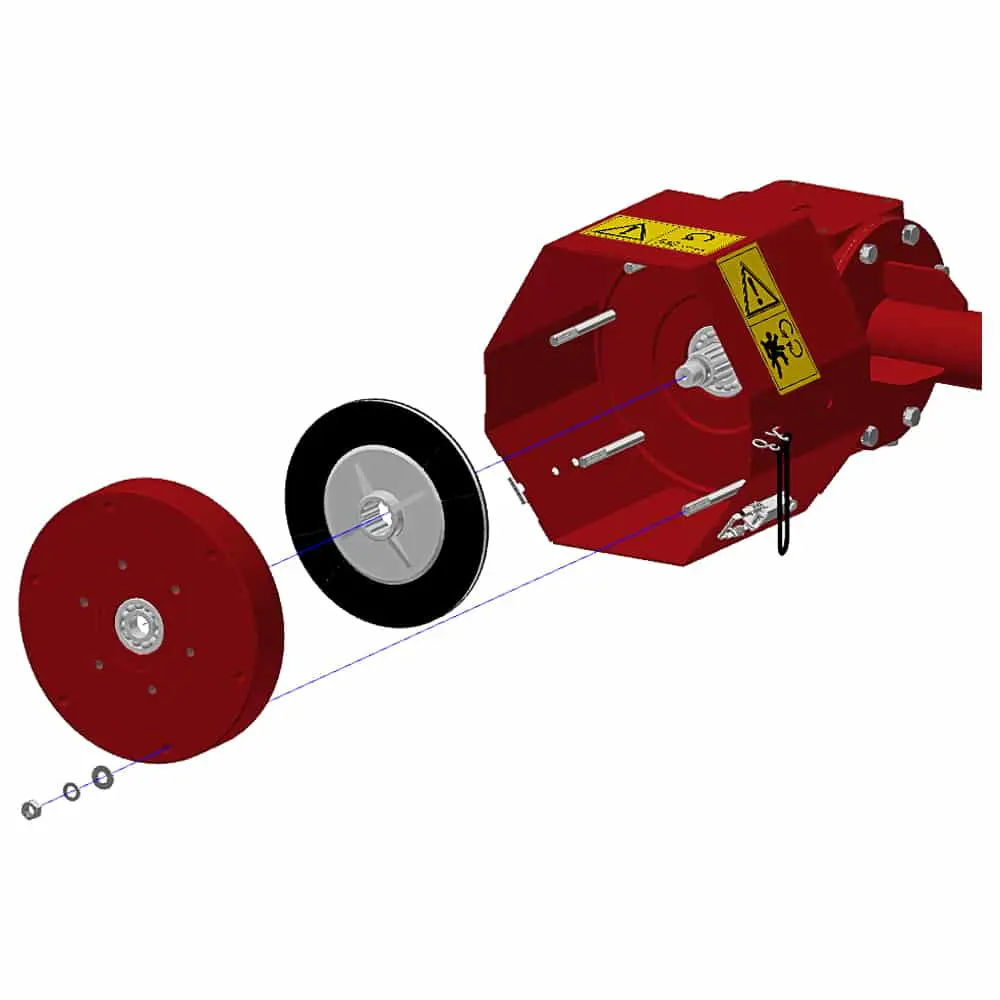

• Torque limiter with dry friction and flywheel
• Soil preparation principle
• Working depth adjustment
• Grader blade

Option and additional accessory

• Rear mesh roller side adjustment device by cylinder
• Roller cast iron notched discs + scraper
• Stainless steel splice seeder
• Spiral roller

Suggestions

The Rotadairon® RDL 180 Stone buriers are to be used:

• on deep unpacked ground
• directly on the parcel

Service and Warranty

The Rotadairon® RDL 180 Stone buriers are delivered with:

• a user manual
• a one-year warranty certificate

It is possible to add a one-year warranty extension (additional option).
